Digital Angle Display 100 Degree Rotary Table Strollers Testing Machines

Name: Digital Angle Display 100 Degree Rotary Table Strollers Testing Machines
Brand: HAIDA
Price: 1 USD

Quality Digital Angle Display 100 Degree Rotary Table Strollers Testing Machines for sale

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-J208

Angle : 0 ° - 20 °

Design standards : EN1888

MOQ : 1 Set

Price : Negotiable

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Product Name : Strollers Testing Equipment

Power : Electronic

Design Standard : EN1888

Control modes : manual control

Angle Modulation : Motor

Angle Display : Digital

Contact Now

Digital Angle Display 100 Degree Rotary Table Strollers Testing Machines

100 Degree Rotary Table Strollers Testing Machine With Digital Angle Display

Design standards	EN1888
Control modes	manual control
Test surface material	P-60 sandpaper
Angle Modulation	Motor
Angle Display	Digital
Angle Accuracy Tolerance	<1 degree
Maximum weight	100KG
Angle	0 ° - 20 °

Testing purposes:

the dynamic, the infant carrier or seat fixed on the frame of the device must not break down, loose or may not have any damage in the test or test.

Test status:
Basket or seat mounted on the frame. Operation basket or seat fixed on the frame 200 fixtures.
Load block A on the basket at the bottom of the class 0 car seat, or the B load block on the seat inside or F load block on the 0 + class car seat and fasten it to the center.
If the car bed design can carry more than one child using multiple test load placed on each one in each child take a regional.
Wheel or axle wagon is fixed in a rigid platform, this platform around the axis parallel to the ground.
Slowly accompanied by the test load car clockwise and counterclockwise rotation of 100 degrees to enable the fixtures to test load transferred to the frame.

Test steps:
1, the test weight is placed on the baby inside the car, the four wheels of the stroller on the table;
2, manually wheel turn in the same direction 100 °, back in situ, and then reverse direction to turn 100 degree;

3. Observe the testing process, with the changes of position by force, strollers parts of the force to tear cause damage;

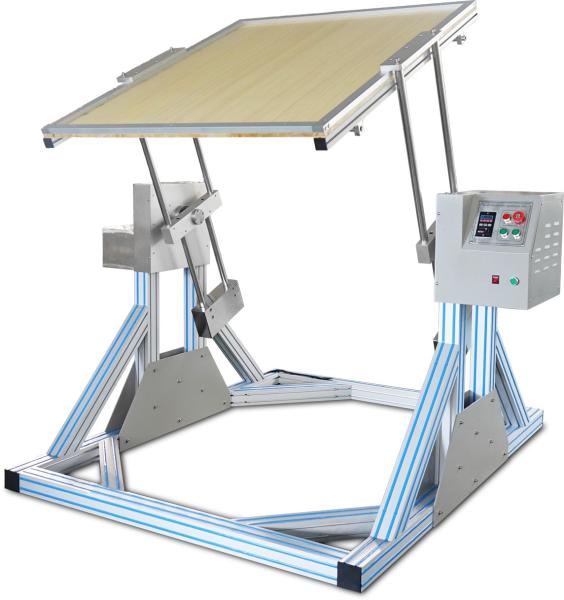

Digital Angle Display 100 Degree Rotary Table Strollers Testing Machines

Product front

Digital Angle Display 100 Degree Rotary Table Strollers Testing Machines

Product left

Digital Angle Display 100 Degree Rotary Table Strollers Testing Machines

Product side
