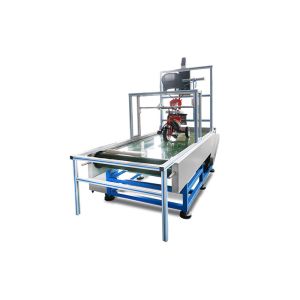

Irregular Surface Strollers Testing Machine , Durability Dynamic Test Machine

Name: Irregular Surface Strollers Testing Machine Durability Dynamic Test Machine
Brand: HAIDA
Price: 1 USD

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-J205

Power : Electronic

Port : ShenZhen

MOQ : 1 Set

Price : Negotiable

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Product Name : Strollers Testing Equipment

Design Standard : EN1888: 2003 Clause 17.

Test speed : 5km / h ± 0.1km / h (adjustable)

Contact Now

Irregular Surface Strollers Testing Machine , Durability Dynamic Test Machine

Description:

The machine according to CNS hand push baby carriages dynamic durability test specification produced. The test methods are: the home model infant car Taichung, the turntable in the test stage, to adjust the conveyor speed of 1.4 ± 0.1m/sec (5kw / h ± 3.6 kw / h) The. After 64 hours of continuous testing, visual car damage. Up to set the number of times to automatically stop the operation. This machine is equipped with electric eye safety device to prevent handle and rubber beam ring fracture resulting in the baby car lost control and damage to the test machine. This machine is suitable for the end of round hand push baby carriages simulate traffic movement and body dynamic durability test.

Irregular Surface Strollers Testing Machine , Durability Dynamic Test Machine

Design standards: EN1888: 2003 Clause 17.

Main technical parameters:

Experimental work	1,2-position of station (optional)
Test speed	5km / h ± 0.1km / h (adjustable)
Drive mode	canvas rubber conveyor belt drive wheel drive, plus a special aluminum alloy conveyor belt drive roller reinforcement
Driver hp	supply AC380V × diameter × 3HP
Down to adjust the distance	Max. 300mm
Effective Width	Max. 1000mm
Test count	LCD,0-999, 999
Carrying load	Max. 100Lb
Power Supply	AC380V × diameter × 5KW
Size of machine	(L × W × H) 3300 × 1400 × 1900mm
Weight	about 600kg
The impact of block shape	trapezoidal, semi-circular or designated
